Standard AV8 Bolt On Conversion Kit – Model A to Flathead V8

This is our most popular conversion kit

If you’ve tried installing a V8 in Model A, you probably now know that it is not a straight forward task. Traditionally this has required the use of later model pedals, mounts and crossmembers. Hunting these down is time consuming and expensive – if you can find originals. And if you don’t have fabrication chops, this task got even more complicated. Unfortunately, most people find this out the hard way.

With the complete standard kit, comes with everything from our basic kit. Plus includes the wishbone mount for running the stock model a wishbone, The clutch cross shaft, The master cylinder and master cylinder mount. As well as the emergency brake handle mount for using the stock model e-brake handle, and we now include the emergency brake cabling kit!

Use your A stuff

Design focused on the Model A. So there’s no swapping later model Ford pedals cross member, or more costly and rare V8 parts.

No BS “bolt-in” ready design, just drills holes and clearance

If you can use a drill and common hand tools, you can put this kit in. If not, you should pay someone to do it for you. Seriously.



The assurance of dual reservoir braking

You can be confident that you’ll be able to stop in an emergency if a brake circuit fails with a dual master cylinder

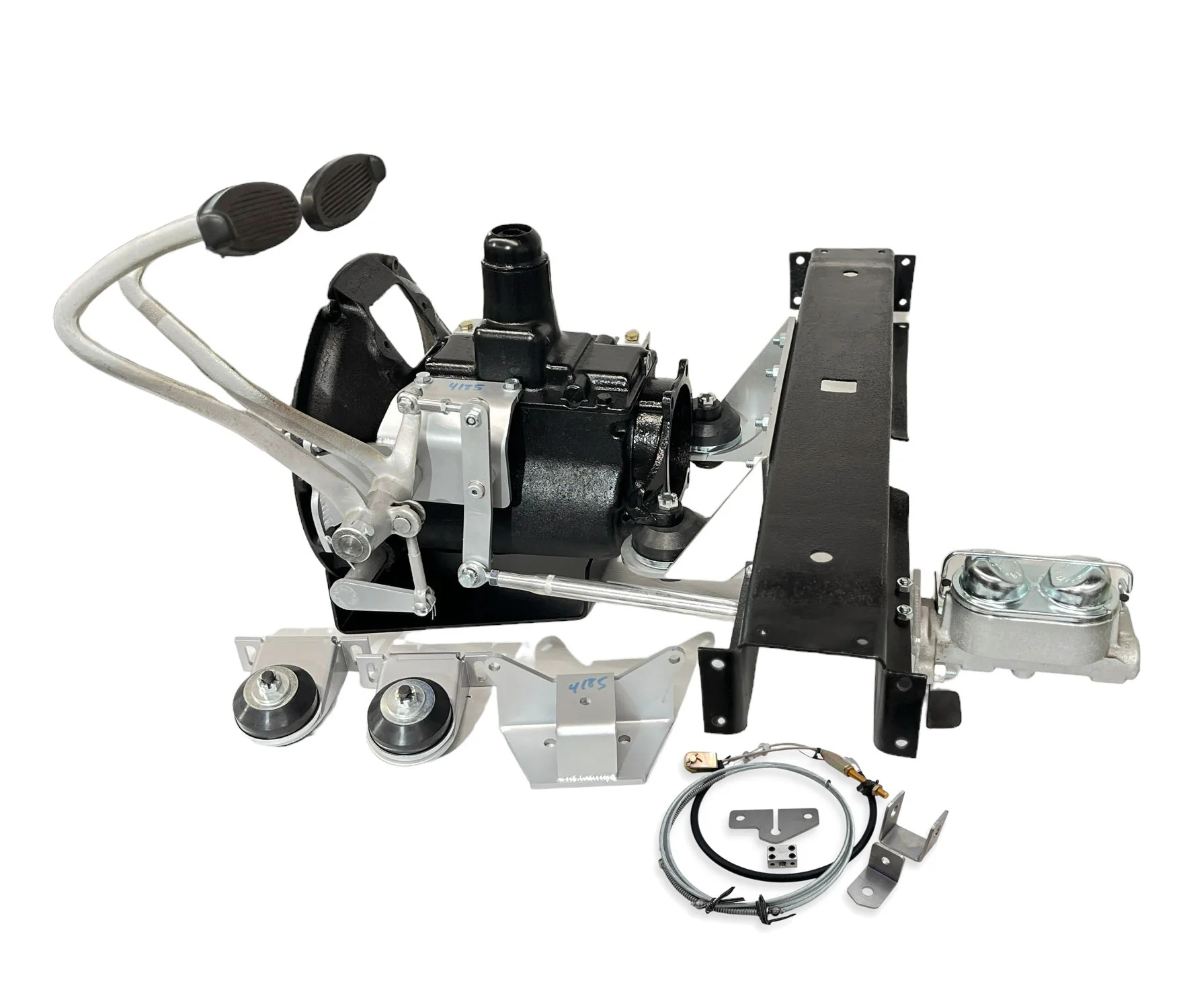

Kit Includes:

• Engine Mounts x2
• Transmission Mount and Reinforcement Plate
• Crossmember Boxing Plates x1
• Biscuit Mounts x4
• Pedal Mount W/ Bushing, Wave Washers, Bell Crank, and linkage setup
• Clutch Cross Shaft
• Wishbone Mount (options for both Car and Truck oil pan types)
• Hydraulic master cylinder and chassis mount
• Emergency Brake Handle Bracket
• Emergency Brake Cable Kit (FREE $225 Value)
• All Mounting Hardware

Optional Components:

• Shock Mounts
• Stock Model A Pedals

CONVERSION KIT FITMENT REQUIREMENTS

V8 Top loader transmission – Ford 3 Speed V8 “top loader” or top shift style transmission, made from 1935-1939 Ford Passenger Car and 1946-1952 Ford Pick-up

Ford F1 1948-1952 steering box conversion – This steering conversion is needed in order to clear the flathead engine block and provide room for F1 style headers. This will provide upgraded steering experience and ease of installation. 1928-1931 Model A steering boxes will likely create clearance issues. For more information on F1 box installation, please contact us.

1942-1948 Car or 1942-1952 Pickup “narrow” style rear mount on transmission –  This mount should measure roughly 8″ center to center. The mount may appear like its part of the transmission, but it is a separate mount. There are 3 version of the transmission mount within the compatible years. Please double check your fitment (See examples below). We also have these original transmission mounts for sale on the website from time to time.

Electric cooling fan for 8BA – When installing any 8BA Flathead V8 (1949-1953) into any Model A, the use of a mechanical cooling fan may be difficult. Placing the mechanical fan very close to the radiator. To make this easier, we recommend installing an electric cooling fan.

1937-1948 or 8BA water pumps – The motor mount and transmission mount combo are intended to be used with 1937-1948 Ford water pumps or 1949-1952 8BA truck pumps only. You will not be able to install the engine without either of these style water pumps.
