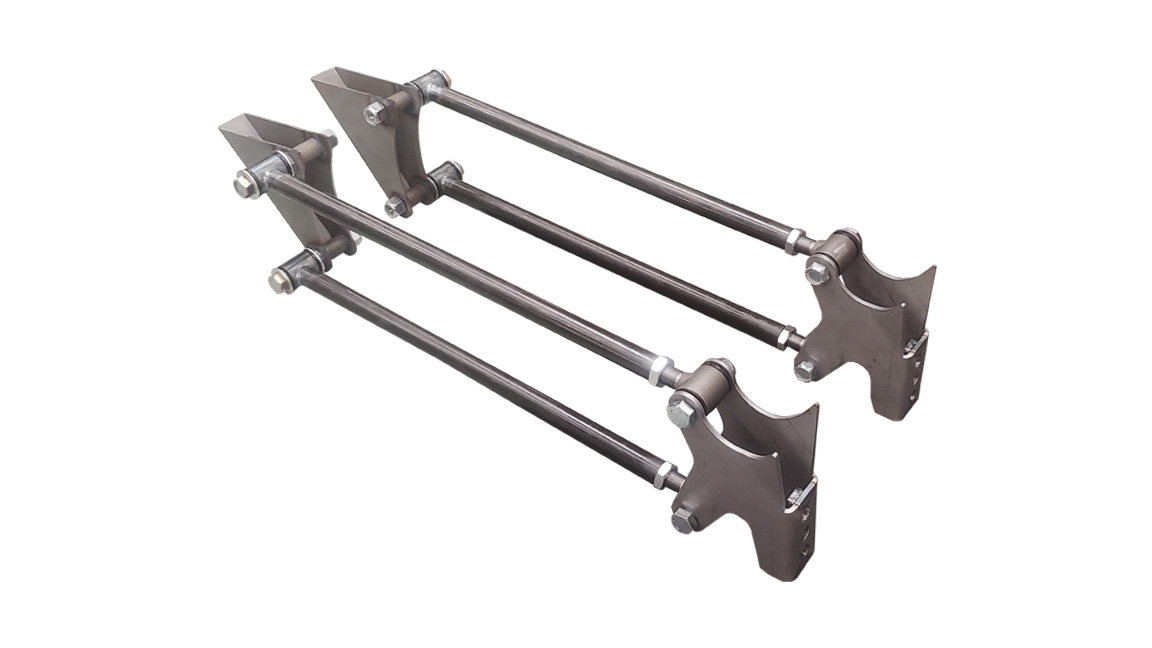

Model A Parallel Rear 4 Bar Kit Steel
$299.00
| PART NUMBER: | RSC-52808 |
Parallel style, Model A rear end 4 link kit. Designed with included 5 degree weld sleeve angle to keep correct geometry on 28-31 Fords, but may suit other applications. Designed for 3″ OD rear end housings and made for coil over type suspensions. See Technical Specifications tab below for part dimensions to ensure proper fitment. SOLD AS KIT
FEATURES:
Weld in Style
Suits 3″ OD Housings
A rear four link kit really simplifies fine tuning your rear end and offers great performance and drivability. Made from DOM tubing with weld sleeves at 5 degree to keep geometry correct on a Model A frame and features forged steel adjusters. Designed specifically for stock style Model A frames (no kick up at back), NOT for Z’d frames or Model A on 32 rails. All made in the USA. See the Technical Specifications tab below for measurements. This kit is also available in a polished stainless steel finish on this store Search for Stainless Model A Rear 4 Bar in the search box to learn more.
WHAT’S INCLUDED:
| 4 (FOUR) | Steel Bars with Adjuster and Bushings Installed |
| 2 (TWO) | Weld On Rear Housing Brackets Coil Over |
| 2 (TWO) | Weld On Front Frame Brackets |
| 1 (ONE) | 8 Piece 5/8-18 Steel Bolt Kit |
NOTES & TIPS:
This kit requires the use of a panhard bar to prevent lateral movement of the rear end. Various rear panhard kits are available on this store. Search for Rear Panhard Bar in the search box to learn more.
Refer to Technical Specifications below for measurements and bolt size information.
Technical Specifications
