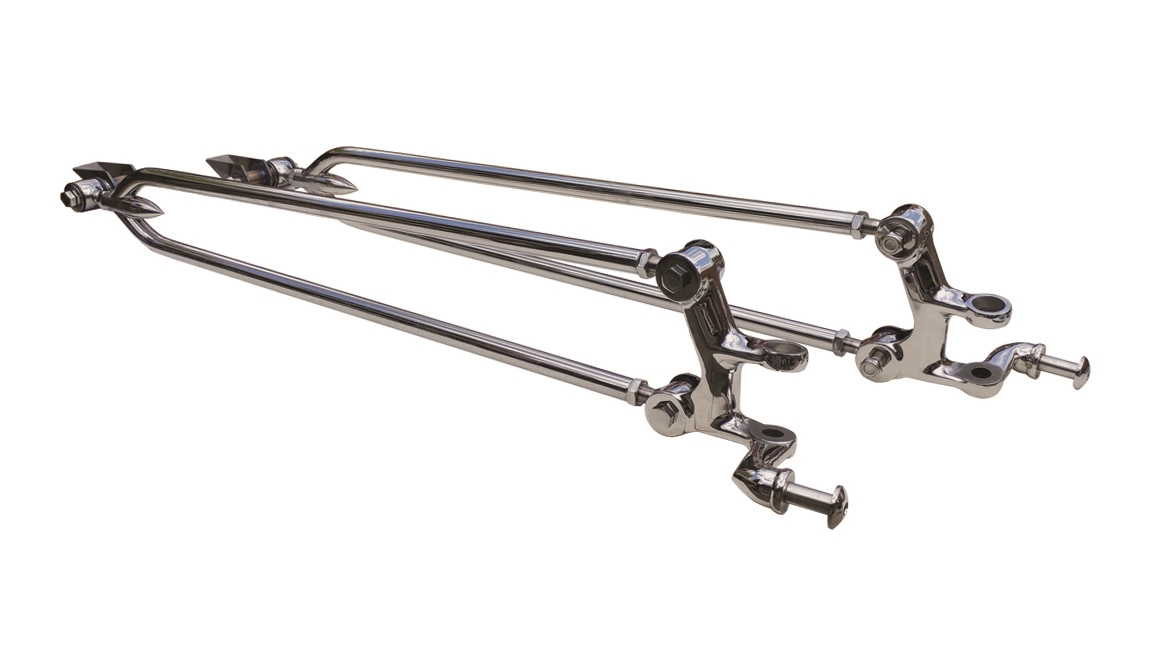

GT2 Bullet Design Ford Hairpin Radius Rod Kit

FEATURES:

Designed For Use With 1932 – 1934 Ford
May Fit Other Applications

Center of Frame Mounting Bracket to Center of Perch Pin: 36 1/2″ (+/- 1/2″ Adjustment)
Batwing Mounting Holes Center to Center: 4 3/4″
For Perch Boss: 2 1/4″

The GT2 Bullet Design Hairpin Kit is fully constructed from stainless steel. The hairpins are made from 304 Stainless with an investment cast bullet center, and come beautifully TIG welded. The investment cast stainless steel batwings are double sheared and feature a built in shock mount with included GT2 batwing bolts. Frame mounting brackets are designed with a 1/2″ ID sleeve welded into a stamped bracket for maximum strength. The kit comes complete with 5/8″ – 18 stainless steel straight rod ends with long life urethane bushings and steel sleeves all around. A polished stainless steel full mounting hardware kit with stamped washers is also included.

WHAT’S INCLUDED:

NOTES & TIPS:

GT2 batwings feature a built in lower shock mount. This allows them to be made with a flat bottom design, eliminating the need for a tapered washer or tapered perch nut during installation.

If planning on using a front panhard bar that will bolt to your batwing, you will need a bolt on panhard bar batwing bracket (available for Left Hand Drive and Right Hand Drive Applications.) Search for Front Panhard Batwing Bracket in the search box to learn more.

Remember to always use Anti-Seize on all stainless steel and aluminum parts.
