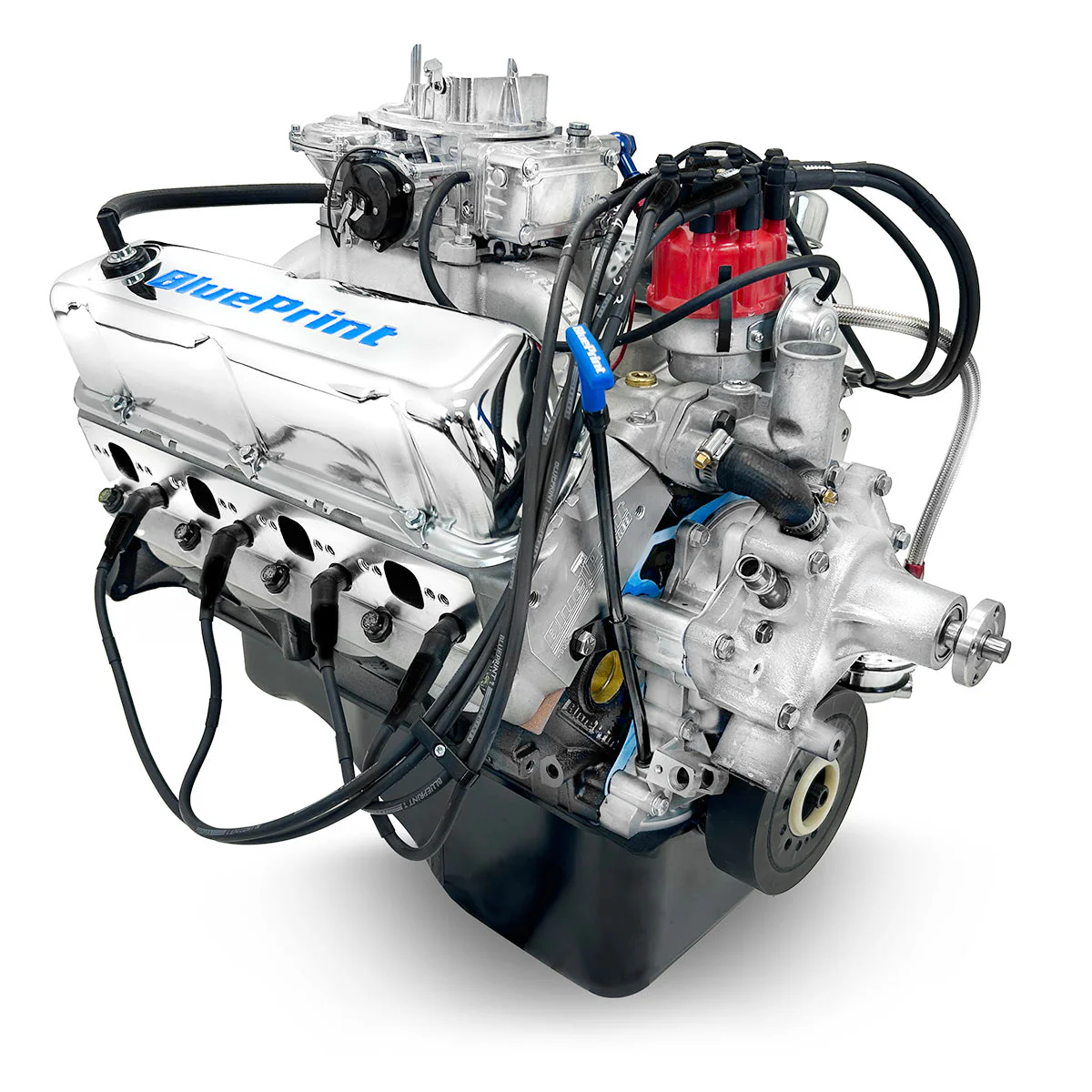

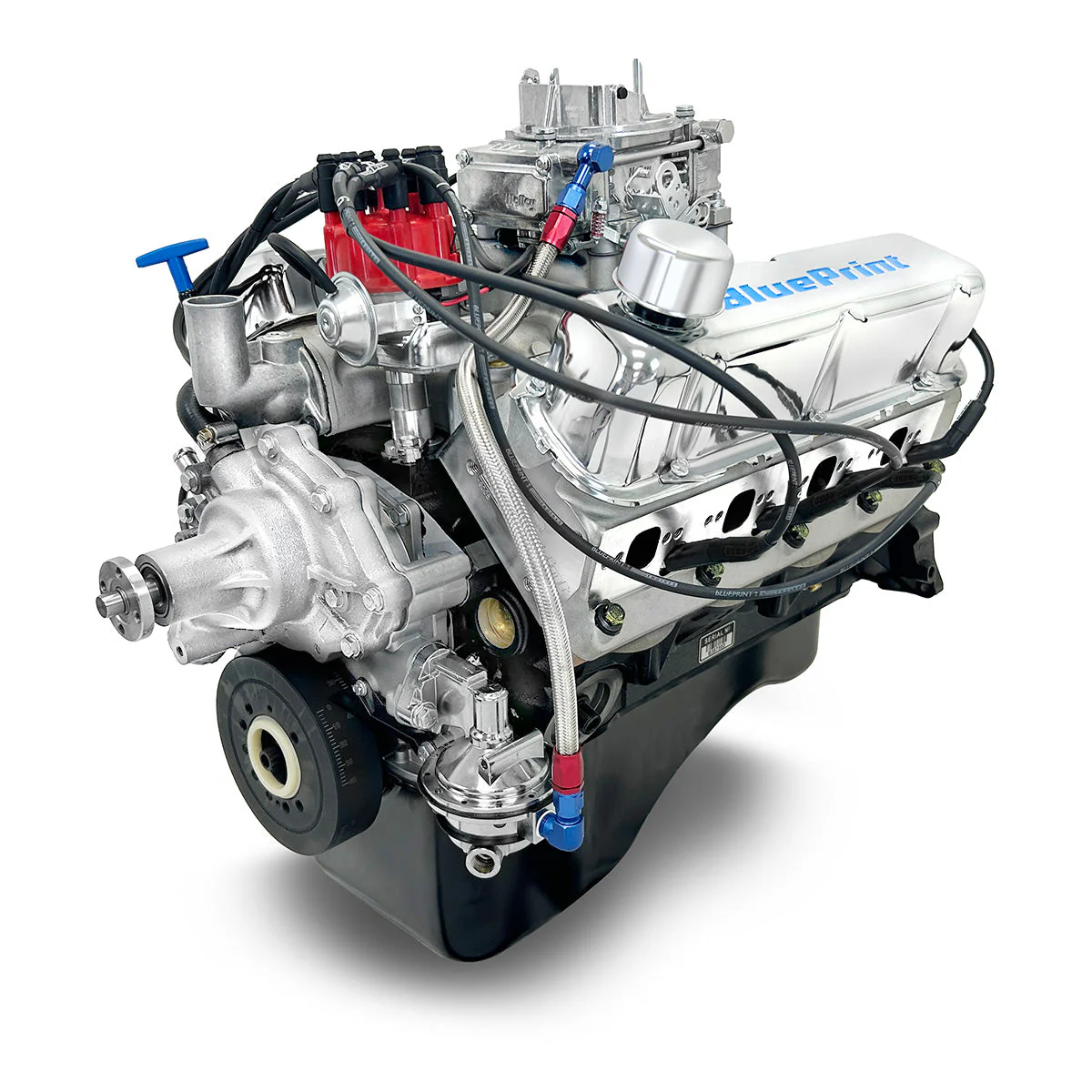

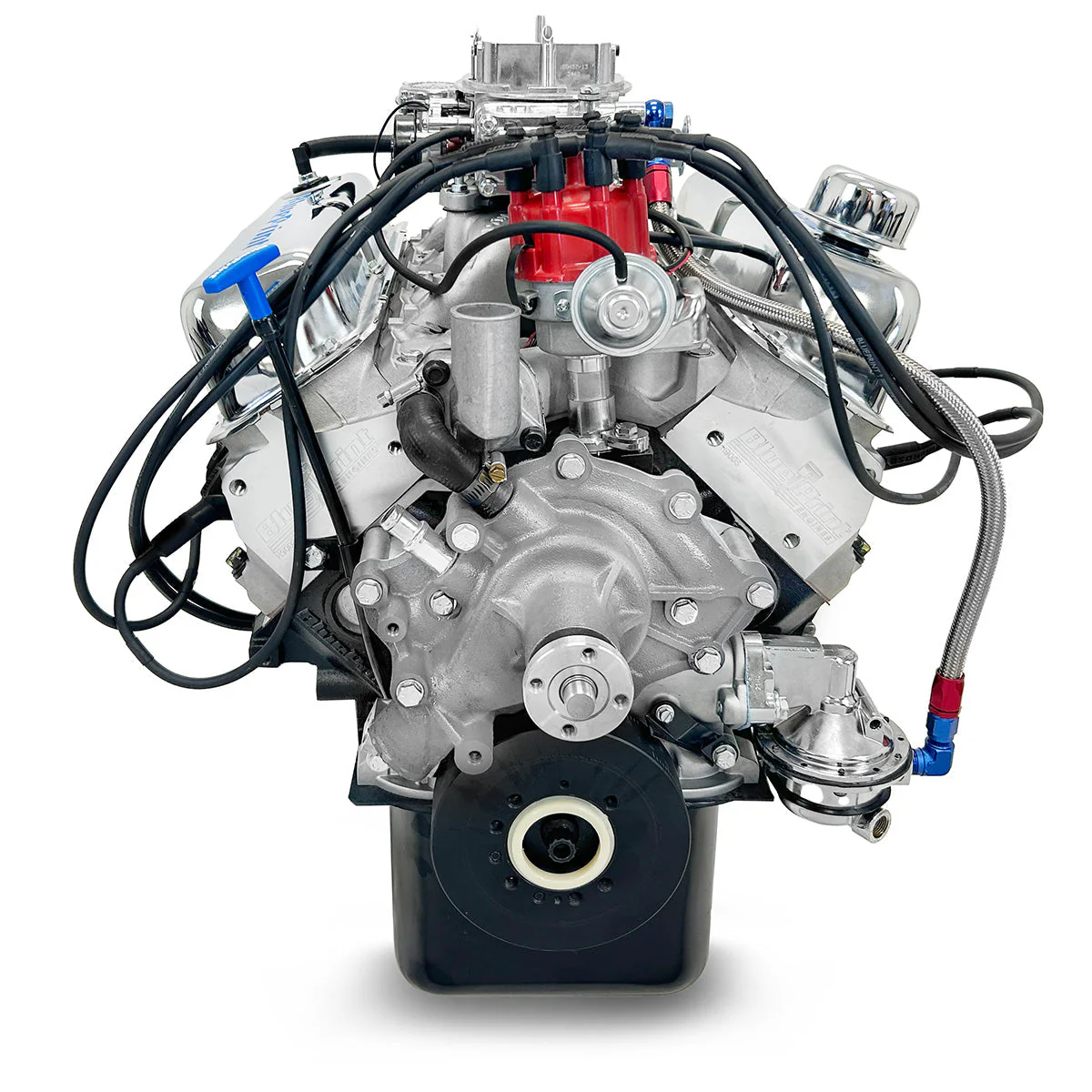

BluePrint BP302CTCD S/B Ford 302 Cruiser Deluxe Crate Engine
$6,559.99
Deluxe Crate Engine Crate Engine Type, Oil Pan Included
- BluePrint Engines Small Block Ford 302 Cruiser Crate Engine
- Carbureted Deluxe Dressed Longblock with Black Pulley Kit, Aluminum Heads, Roller Cam, and Front Sump Pan
- HP And Torque: 361 HP / 334 FT LBS
- Compression Ratio: 9.4:1
- Aluminum Heads
BluePrint Engines 302CI Small Block Ford Deluxe Dressed Longblock Crate Engine
- HP And Torque: 361 HP / 334 FT LBS
- Compression ratio: 9.4:1
- Aluminum heads
- Hydraulic roller cam
- Cast steel crank
- Hypereutectic pistons
BLOCK:
- NEW BluePrint cast iron block
- 4-bolt main
- 4.000″ bore
- 1-Piece rear main seal
- Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
- 3.000″ stroke
- OEM type 5.090″ connecting rods
- Hypereutectic pistons
- 50oz external balance
CYLINDER HEADS:
- BluePrint aluminum cylinder heads -HP9008
- 60cc chamber
- 2.02″ intake/1.60″ exhaust valves
- 190cc intake/60cc exhaust runners
CAM SPECS:
- Roller cam
- .533 intake / .544 exhaust
- 215 intake / 220 exhaust duration
- @ .050 – 114 degree lobe separationIGNITION TIMING:
- 10-16 degrees initial, 32-34 total
ALSO INCLUDES:
- Front sump oil pan
- Valve covers
- Timing cover

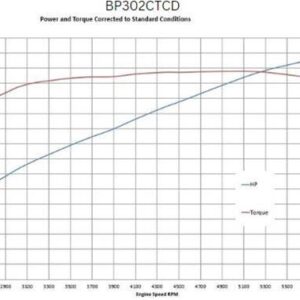

- Dyno test results shipped with engine
- Carburetor
- Intake
- Standard rotation waterpump
- Spark plugs and wires
- Distributor
- Harmonic balancer
WARRANTY:
- 30 month
| KEY SPECS | |
|---|---|
| MFG. Part # | BP302CTCD |
| Brand | BluePrint Engines |
| Engine Displacement | 302 cu. in. |
| Compression Ratio | 10.7:1 |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Camshaft Duration (.050 in) | 220° intake / 224 ° exhaust |
| Camshaft Lift (in) | .533 Intake / .554 Exhaust |
| Bore x Stroke (in) | 4.060″ x 3.000″ |
| Carburetor Included | No |
| Intake Manifold Included | Yes |
| Distributor Included | No |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | Yes |
| Wiring Harness Included | Yes |
