31 Spline 9″ Rear Axles 5 x 4.5″ / 5.5″ Patterns

Name: 31 Spline 9" Rear Axles 5 x 4.5" / 5.5" Patterns
SKU: 379
Availability: InStock

$399.00

PART NUMBER:

RSC-52050

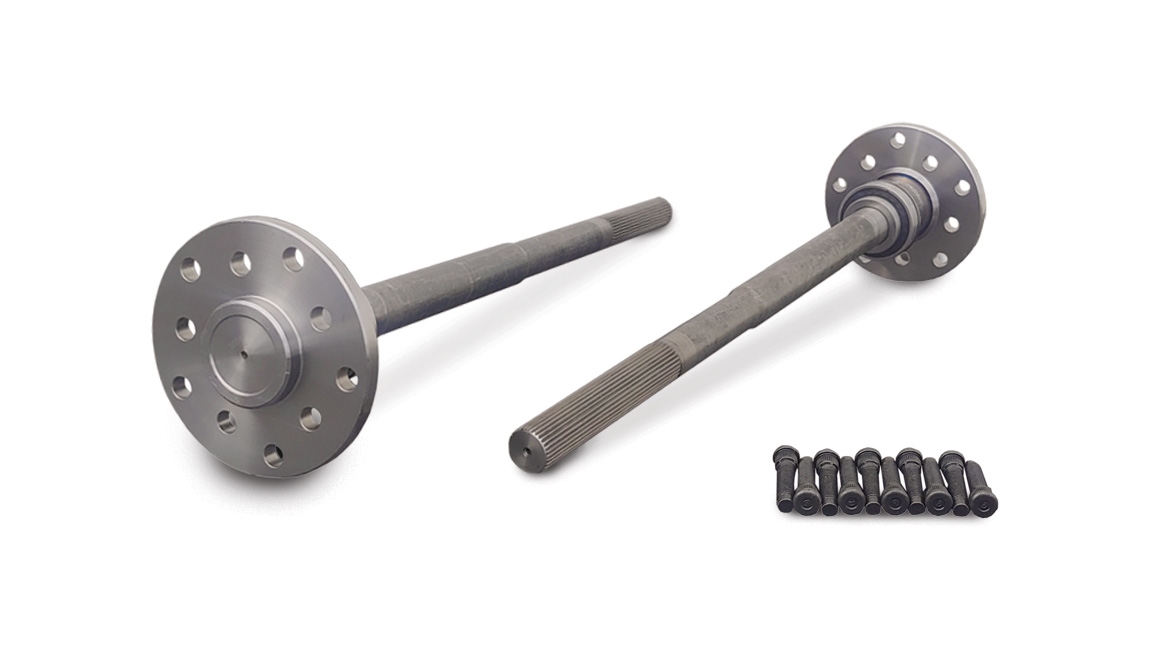

9″ Ford axles 31 spline with 2.5″ brake offset / 2.800 pilot register. Designed in offset lengths to suit centered housing rear ends NOT original centered drive shafts. Includes 1/2″-20 press in studs that can be put at early 5 x 5.5″ or late 5 x 4.5″ lug patterns. OEM Ford bearings and bearing retainers installed. These axles are 2.5″ offset which means the AF-AF length will be 5″ greater than the HF-HF length Sizes are AF-AF. Specify Length . SOLD IN PAIRS

Category: Rear End

Description
Reviews (0)

FEATURES:

9″ Ford 31 spline forged rear axles with 2.5″ brake offset and a 2.800 drum register. Available in 55″, 56″, and 57″ AF-AF sizes and made specific to suit centered housing rear ends that require 1 axle to be shorter that the other axle. Offering dual Ford patterns with 1/2-20 press in wheel studs included. OEM Ford bearings and retaining collars pre-installed.

WHAT’S INCLUDED:

1 (ONE)

Pair 31 Spine 9″ Axles Dual Drilled for Centered Housings

NOTES & TIPS:

Centered housing means that the pinion will be off center, requiring the axles to be different lengths. If you have a stock rear end with centered driveshaft these axles will NOT fit.
